Tank Sight Glass Level Gauge “IWAKO”
Tank Sight Glass Level Gauge “IWAKO” : A sight glass level gauge is an instrument used to show the level of a liquid within a tank or vessel. The device is simple yet effective, consisting of a glass tube or plate through which the liquid level can be directly observed. This type of gauge is particularly common in industrial settings where it’s important to know the liquid level for process control or safety reasons.
Key Components of a Glass Level Gauge:
-Gauge Glass: A high-strength, transparent glass tube or plate that provides a window to observe the liquid level.
-Gauge Body: The main structure that holds the glass in place and connects to the tank, usually made from metal such as stainless steel or brass for durability and corrosion resistance.
-Valves: Typically located at the top and bottom of the gauge body, these allow for isolation of the gauge for maintenance or safety purposes. They may also have a ball check feature for automatic shut-off in case the glass breaks.
-Gaskets and Seals: To prevent leaks, gaskets and seals are used between the glass and metal parts.
Types of Glass Level Gauges:
-Transparent Level Gauges: Use a single piece of glass with the liquid visible through it, suitable for colorless liquids.
-Reflex Level Gauges: Use a piece of glass with ridges on one side. The liquid level appears as a clear line across the ridged face, which makes it easy to read even for colorless liquids.
-Tubular Level Gauges: Consist of a simple glass tube connected between two end blocks with valves and are often used for lower-pressure applications.
How it works Sight Glass Level Gauge :
The liquid inside the tank seeks the same level in the gauge. When observing the gauge, the user can see the liquid level, which corresponds to the level inside the tank. In transparent gauges, light can pass through the liquid and glass, making the liquid appear darker than the empty space above. In reflex gauges, the ridges create an optical difference between the empty and liquid-filled sections, enhancing visibility.
Applications Sight Glass level gauge are used in a variety of industries, including:
-Chemical and petrochemical plants
-Pharmaceutical manufacturing
-Food and beverage processing
-Power generation
-Water and wastewater treatment facilities
Advantages Sight Glass level gauge :
-Direct visualization of the liquid level without the need for complex sensors.
-Simplicity and reliability with few moving parts.
-Easy installation and maintenance.
Sight Glass level gauge Safety and Maintenance Considerations:
-The glass can be susceptible to breaking under certain conditions, such as overpressure, thermal shock, or mechanical impact.
-Regular cleaning and inspection are necessary to ensure the gauge remains clear and accurate.
-For high-pressure or hazardous applications, protective features like mica shields or additional safety glass may be used to protect the gauge glass.
Choosing the right glass level gauge depends on the specific requirements of the application, such as the type of liquid, operating temperature and pressure, and the required level of visibility and durability.

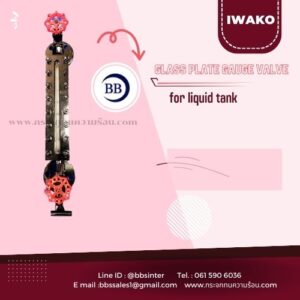

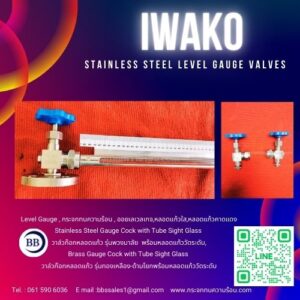

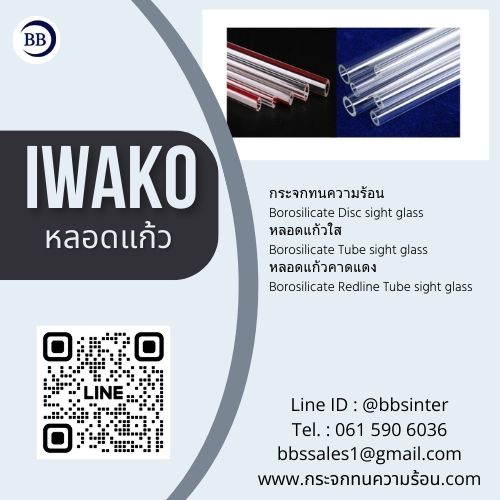

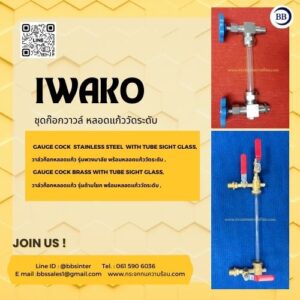

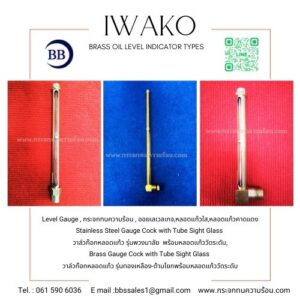

BB Steel Internationnal Supplier product “IWAKO” : Borosilicate Sight Glass ,Disc Sight Glass,Round Sight Glass, Tube Sigh Glass, Water Liquid Level Gauge , Water Level Gauge,Bronze water gauge valve,Gauge Valve with Sight Glass Tube ,Stainless Steel Liquid Level Gauges , Stainless Steel Gauge Cock,Water Gauge ,Gauge Valve with Sight Glass Cock, Oil Level Gauge , Bronze Water Gauges,Brass Oil Level Gauge , Flow Sight Glass. Tubular liquid level gauges ,Transparent Liquid Tank,Welded Glass Plate Sight Glass Level Gauge.
