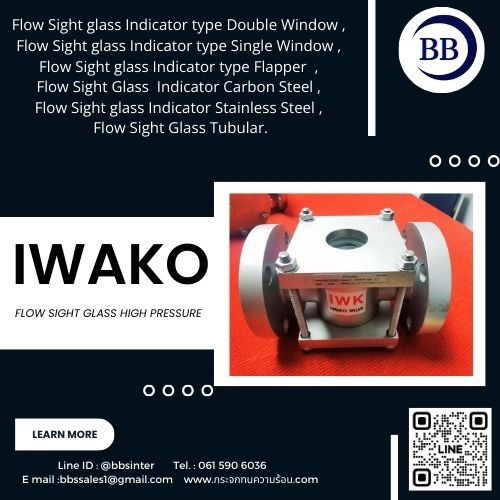

High Pressure Inline Flow Sight Glass “IWAKO”
มี.ค.
High Pressure Inline Flow Sight Glass
A High-Pressure Inline Flow Sight Glass is a specialized device designed for visually inspecting and monitoring fluid flow in high-pressure industrial pipeline systems. It’s an essential tool in various applications where it’s critical to observe the flow characteristics of liquids or gases under high pressure.
Key Features and Specifications:
-Construction:
Body Material: Typically made from robust materials like stainless steel or carbon steel to withstand high-pressure environments.
Glass Type: The sight section is usually made from toughened borosilicate glass or similar materials capable of withstanding high pressures without compromising visibility.
-Design:
Designed to be installed inline within a pipeline system.
Compact and robust to handle the stresses of high-pressure applications.
Often comes with a flanged or threaded connection for easy integration into existing systems.
-Pressure Rating:
Specifically designed to withstand high-pressure conditions, often ranging from several hundred to a few thousand PSI (pounds per square inch).
-Temperature Range:
Capable of operating within a wide temperature range, suitable for various industrial processes.
-Visibility:
Provides a clear view of the flow, including color, presence of particles, bubbles, or any irregularities in the flow pattern.
-Applications:
Chemical Processing: For monitoring the flow of aggressive chemicals under high pressure.
Oil and Gas Industry: Used in pipelines where monitoring the flow of oil, gas, or other high-pressure fluids is necessary.
Power Generation: In systems where steam or other high-pressure media need to be visually monitored.
Pharmaceutical and Food Processing: Where high-pressure sanitary conditions are required.
-Benefits:
-Safety and Process Monitoring: Enables real-time observation of flow conditions, which is critical for safety and efficiency in high-pressure systems.
-Durability: Designed to endure the stresses of high-pressure applications, thereby ensuring a longer lifespan.
-Versatility: Can be used with a variety of fluids, including corrosive and abrasive substances, depending on the materials used in construction.
-Installation and Maintenance:
-Installation: Should be performed by qualified personnel, ensuring proper alignment and sealing to prevent leaks under high pressure.
-Maintenance: Regular inspection and cleaning are essential to maintain visibility and ensure safety. The integrity of the glass and seals should be checked periodically.
-Considerations:
Material Selection: The choice of materials for the body and the glass should be based on the specific type of fluid and its properties, such as corrosiveness and abrasiveness.
Pressure and Temperature Ratings: It’s crucial to choose a sight glass that meets or exceeds the maximum expected operating pressure and temperature of the system.
In summary, a High-Pressure Inline Flow Sight Glass is a crucial component in many industrial settings, offering a combination of strength, visibility, and safety for monitoring fluid flow under demanding conditions.
BB STEEL INTERNATIONNAL Flow sight glass supplier : : Flow Sight Glass Stainless steel 304 , Flow Sight Glass Stainless steel 304L , Flow Sight Glass Stainless steel 316, Flow Sight Glass Stainless steel 316L , Flow Sight Glass Carbon steel, Sight Flow Indicator Flange JIS, Sight Flow Indicator Flange DIN, Sight Flow Indicator Flange ANSI, Double Window Sight Glass indicator, Single Window Sight Glass, Flapper type Double Window Sight Glass.
