Glass plate gauge valve for liquid tank

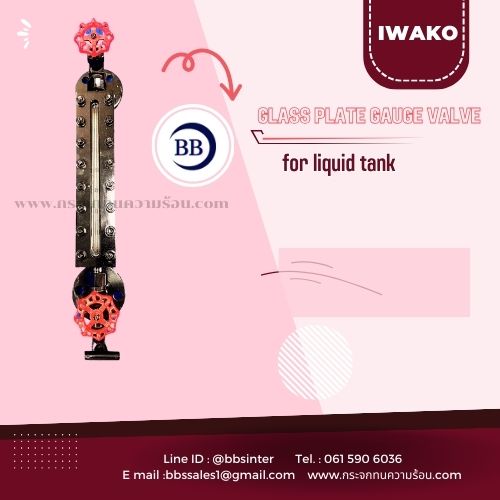

Glass plate gauge valve for liquid tank : Glass plate gauge valves are specifically designed to secure and operate plate glass gauges, which are used to provide a visual indication of liquid level within a tank. The glass plate gauge typically comprises a pair of these specialized valves located at the top and bottom of the gauge. The main functions of glass plate gauge valves are:
-Isolation:
They allow for the isolation of the gauge from the tank or vessel for maintenance, cleaning, or glass replacement without having to drain the tank or depressurize the system.
-Safety:
Many glass plate gauge valves include a safety feature, such as an automatic ball check mechanism, that helps prevent the process fluid from escaping in case the glass breaks.
-Drainage and Venting:
These valves may include a drain port at the bottom valve and a vent port at the top valve to facilitate filling, draining, or venting the gauge as necessary during start-up, shut-down, or maintenance procedures.
-Pressure Control:
They help to maintain and regulate the pressure within the gauge to ensure it matches or is safely below the maximum pressure rating of the glass and the gauge assembly.
When selecting glass plate gauge valves for a liquid tank, several
factors must be considered:
-Material Compatibility:
The valve material must be compatible with the liquid in the tank to prevent corrosion, degradation, or contamination.
-Pressure and Temperature Ratings:
The valves must be able to withstand the operating pressure and temperature of the liquid within the tank.
-Size and Connections:
The valves must be the correct size for the gauge and have the appropriate connections for the tank and gauge assembly.
-Visibility:
The design of the valve should allow for clear visibility through the glass plate gauge for accurate level measurement.
These valves are commonly used in various industrial sectors, including petrochemical, pharmaceutical, food and beverage, and energy, where precise liquid level measurement is critical. It’s always important to follow proper safety and installation procedures when dealing with glass plate gauge valves and to consult with the gauge and valve manufacturer to ensure proper usage and compliance with relevant standards and regulations.
BB Steel Internationnal Supplier product “IWAKO” : Borosilicate Sight Glass ,Disc Sight Glass,Round Sight Glass, Tube Sigh Glass, Water Liquid Level Gauge , Water Level Gauge,Bronze water gauge valve,Gauge Valve with Sight Glass Tube ,Stainless Steel Liquid Level Gauges , Stainless Steel Gauge Cock,Water Gauge ,Gauge Valve with Sight Glass Cock, Oil Level Gauge , Bronze Water Gauges,Brass Oil Level Gauge , Flow Sight Glass ,Welded Glass Plate Sight Glass Level Gauge.
