Flow sight glass used in Chemical plant
Flow sight glass used in Chemical plant : A flow sight glass is an invaluable tool in a chemical plant, marrying simplicity with essential functionality. It not only provides a direct visual insight into the fluid dynamics of the process but also plays a pivotal role in ensuring safety, efficiency, and product quality. Given the often volatile and sensitive nature of chemical processes, having a reliable means to visually monitor operations is not just beneficial—it’s essential.
What is a Flow Sight Glass?
A flow sight glass, commonly referred to as a sight flow indicator or simply sight glass, is a transparent instrument that allows for the visual inspection of the flow of a liquid within pipelines or vessels. It typically consists of a transparent tube or a window made from materials such as borosilicate glass, which is encased in a metal frame or body. This construction provides clear visibility while ensuring the sight glass can withstand the pressure, temperature, and sometimes the corrosive nature of the substances flowing through it.
How is Flow Sight Glass used in a Chemical Plant?. In a chemical plant, the flow sight glass serves several crucial purposes:
1. Process Monitoring:
The primary use of a flow sight glass is to offer real-time visual inspection of fluid flow. It enables operators to monitor the rate, clarity, color, and consistency of the liquids being processed. This is crucial in chemical industries where the consistency and color of the fluid might indicate the completion of a reaction or the mixing quality of two or more substances.
2. Safety Checks:
Safety is paramount in chemical plants due to the potential hazards associated with the chemicals being processed. Flow sight glasses help operators immediately detect anomalies such as gas bubbles in liquids, phase separations, or undesired particulate matter. Spotting these irregularities promptly can prevent potentially hazardous situations or equipment damage.
3. Quality Control:
By visually inspecting the flow, operators can detect issues such as contamination, sedimentation, or phase separation. Ensuring the purity and correct composition of the liquids is essential for maintaining product quality, especially in processes where impurities can have significant downstream effects.
4. Equipment Verification:
Flow sight glasses can be equipped with flow indicators like flappers, rotors, or drip tubes. These components move with the flow of the liquid, providing a clear sign that the liquid is moving at the desired rate and direction. This is especially useful in verifying pump operations, ensuring valves are open or closed as intended, and confirming the proper functioning of other equipment.
5. Reducing Operational Downtime:
Being able to visually identify issues allows for quicker troubleshooting and rectification. Instead of shutting down an entire system to find a problem, operators can often identify and resolve issues through a quick visual check, thus reducing operational downtimes.

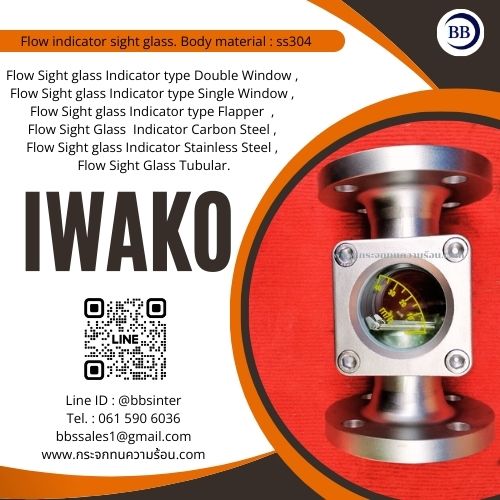

BB STEEL INTERNATIONNAL Flow sight glass supplier : : Flow Sight Glass Stainless steel 304 , Flow Sight Glass Stainless steel 304L , Flow Sight Glass Stainless steel 316, Flow Sight Glass Stainless steel 316L , Flow Sight Glass Carbon steel, Sight Flow Indicator Flange JIS, Sight Flow Indicator Flange DIN, Sight Flow Indicator Flange ANSI, Double Window Sight Glass indicator, Single Window Sight Glass, Flapper type Double Window Sight Glass.
