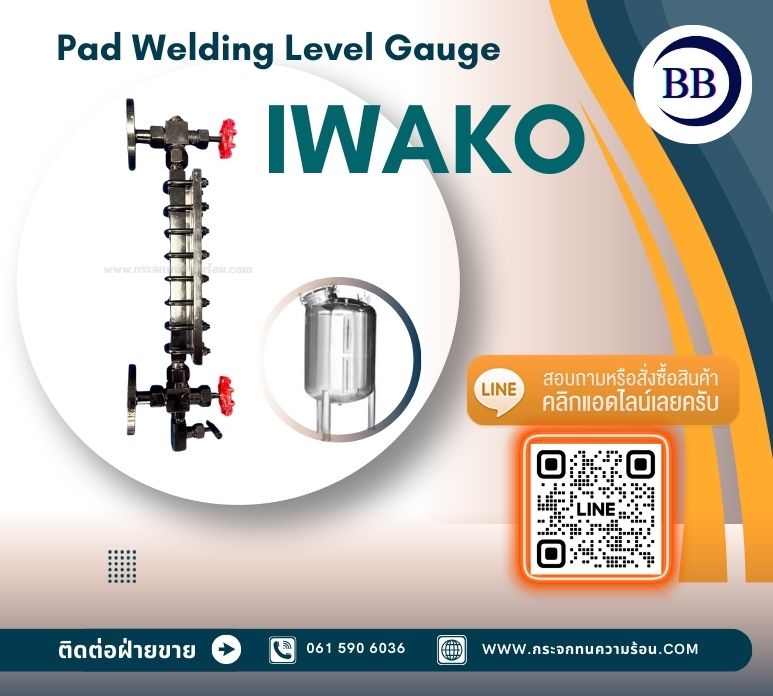

Weld Pad Level Gauge Industrial “IWAKO”
Weld Pad Level Gauge Industrial “IWAKO” – The Integrated Solution for Accurate Liquid Level Monitoring. As a factory manager, I’ve worked with all kinds of level measurement devices, from basic tubular gauges to advanced magnetic systems. But when we needed a direct, durable, and zero-compromise solution for some of our toughest process tanks, the Weld Pad Level Gauge was the clear choice. This gauge becomes part of the tank itself, ensuring an uninterrupted, accurate view of the liquid inside.
What Makes the Weld Pad Level Gauge Stand Out?
The Weld Pad Level Gauge is not just attached to a tank — it is welded directly into the vessel wall. By eliminating external chambers, pipework, and multiple sealing points, it provides a direct liquid column view that exactly matches the internal process level. This design removes dead zones, avoids external contamination points, and significantly reduces the risk of leaks.
For fluids that are viscous, fouling, abrasive, or contain suspended solids, this flush-mounted design avoids the clogging and maintenance issues typical with external sight glass chambers.
Construction Designed for Reliability
The body of the Weld Pad Level Gauge is typically machined from carbon steel or stainless steel and contoured to match the curvature of the tank shell. After welding, a flat transparent borosilicate glass plate is mounted over a precision-machined sealing surface. The glass is clamped with a cover plate, studs, and a carefully selected gasket set to maintain even load.
Borosilicate glass is chosen for its resistance to thermal shock and chemical attack. For services with steam or aggressive chemicals, a thin mica sheet can be added as a shield, protecting the glass from etching and extending service life.
Installation and Best Practices
A correct installation is critical to ensuring the performance and safety of a Weld Pad Liquid Level Gauge. The pad must match the vessel curvature precisely, and welds should be executed by qualified personnel following proper welding procedures.
After welding, it’s standard to re-machine or lap the sealing face to ensure it remains perfectly flat. During assembly, all sealing surfaces must be clean, and the gasket loading must be even to avoid glass edge stress.
Operational Advantages
• No external piping or isolation valves reduces maintenance points
• Flush-mounted design minimizes product hold-up
• Excellent visibility even in challenging fluids
• Robust under vibration and thermal cycling
• Long service life with proper installation
Frequently Asked Questions
Q: Can a Weld Pad Level Gauge be used for corrosive chemicals?
A: Yes, provided that the gauge body, gaskets, and fasteners are selected for chemical compatibility. Stainless steel or lined steel options are common for corrosive service.
Q: How often should the glass be replaced?
A: Replacement intervals depend on process conditions. With a mica shield and proper gasket maintenance, the glass can last for many years.
If your plant needs a Weld Pad Level Gauge or Weld Pad Liquid Level Gauge that can deliver years of trouble-free service in the harshest industrial conditions, contact us today for expert advice and a tailored quotation.
Pad Welding Level Gauge “IWAKO” for sale Weld pad level gauge carbon steel , Weld pad level gauge Stainless Steel.
